32吨偏挂59白菜网论坛参数尺寸
L型32t/5t单主梁吊钩59白菜网论坛主要技术参数及尺寸，L型32吨偏挂59白菜网论坛主要技术参数及尺寸，L型32t/5t单主梁偏挂59白菜网论坛技术参数表，L型32t/5t单主梁偏挂59白菜网论坛外形尺寸表，32吨偏挂59白菜网论坛主要技术参数及尺寸

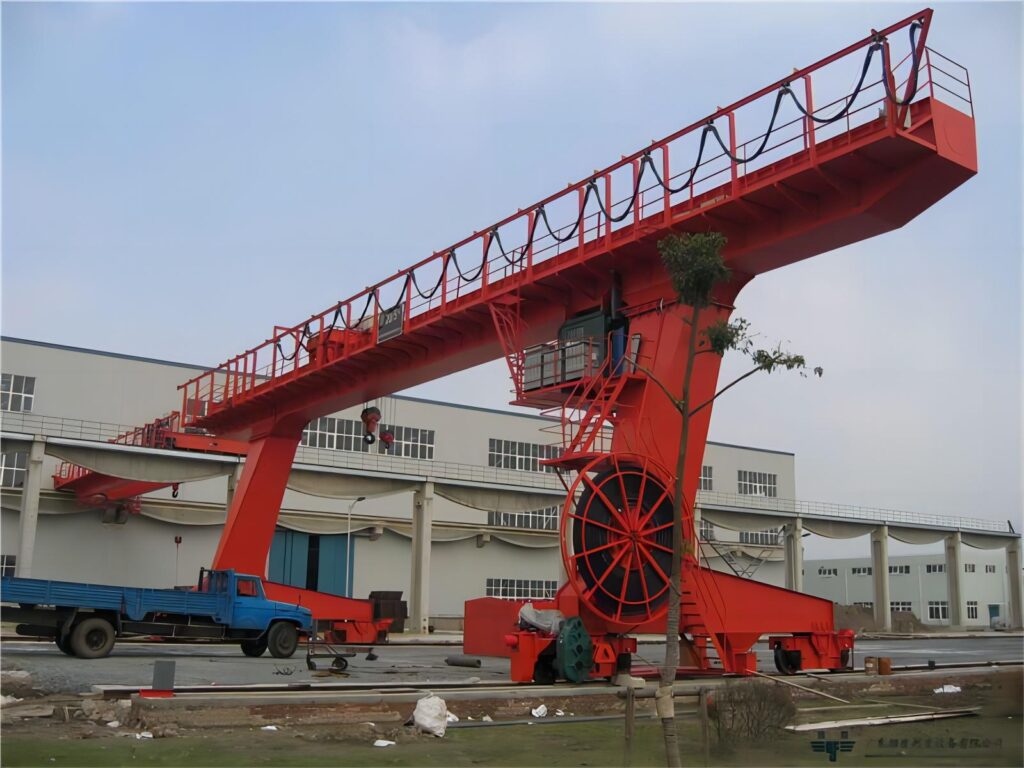

32吨偏挂59白菜网论坛图片
32吨偏挂59白菜网论坛产品介绍
1.L型32t/5t单主梁吊钩59白菜网论坛适用于露天货场、铁路沿线进行一般的装卸吊装及起重搬运工作。
2.L型32t/5tt龙门吊因结构特点，在起升高度一定的情况下，整机的高度有所降低,节约了成本。
3 .L型32t/5tt龙门吊起重机自重轻,轮压小，性能可靠。
Introduction:
L Type Single Girder Gantry Crane is opplid to general materials handling service in outdoor freight yard or along
railway lines,such as loading, unloading, lifting and transferring work.
Given certain lift height,theoverrall height ofL Type Gantry Crane is reduced out of its structural features. As a
result, the cost is lowered.
L Type Gantry Crane is featured by Light deadweightjight wheel load and reliable performance.

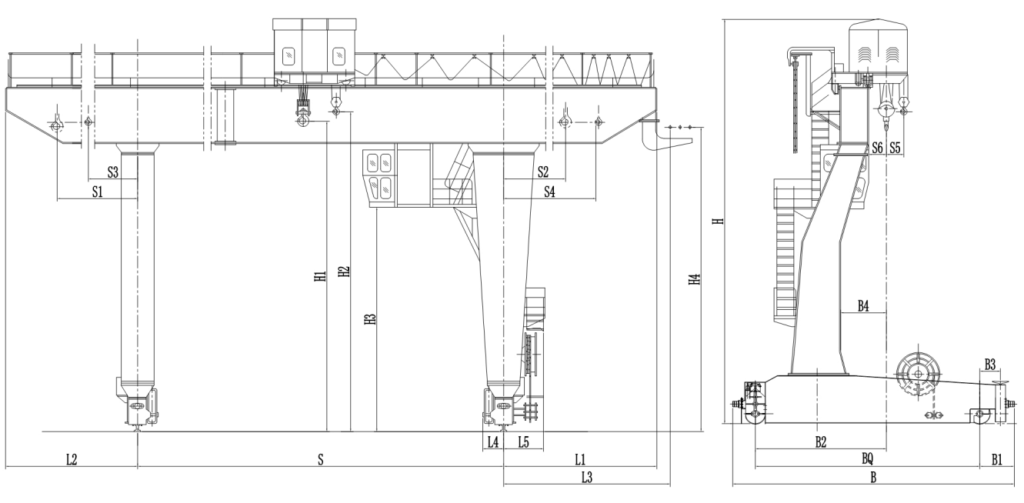

32吨偏挂59白菜网论坛结构图
32吨偏挂59白菜网论坛技术参数
| 起重量 Cap | 主钩 Mam | t | 32吨 | ||||
| 副钩 Auxiliary | 5吨 | ||||||
| 跨度 Span | m | 18 | 22 | 26 | 30 | 35 | |
| 起升高度 Lifting Height | 10 | 11 | |||||
| 10.8 | 11.8 | ||||||
| 工作制度Duty | A5 | ||||||
| 速度Speed | 主 钩Mam | m/min | 7.6 | ||||
| 副 钩 Auxiliary | 11.9 | ||||||
| 小车运行 Crab travelling | 38.6 | ||||||
| 大车运行 Trolley travelling | 39 | 38 | |||||
|
极限尺寸 Limt dimenstion |
L1 | mm | 8000 | 10000 | |||
| L2 | 8000 | 10000 | |||||
| L | 980 （两吊钩平行主梁） | ||||||
| C1 | 5000 | 7000 | |||||
| C2 | 5000 | 7000 | |||||
|
主要尺寸 Main dimenstion |
H | 14380 | 14380 | 15500 | |||
| H1 | 10 | 11 | |||||
| H2 | 800 | ||||||
| H3 | 763 | 590 | |||||
| B | 10006 | 11800 | |||||
| W | 8000 | 8500 | |||||
| K | 一 | ||||||
| L3 | 780 | ||||||
| 最大轮压 Max.Wheel Loading | kN | 210 | 215 | 225 | 230 | 235 | |
| 电机总功率Total Power | kw | 108 | 116 | ||||
| 荐用号冈轨 Crane Rail Recommended | QU80 | ||||||
| 电 源 Power Supply | I 三相交流 3-Phase A.C.50HZ380V | ||||||
